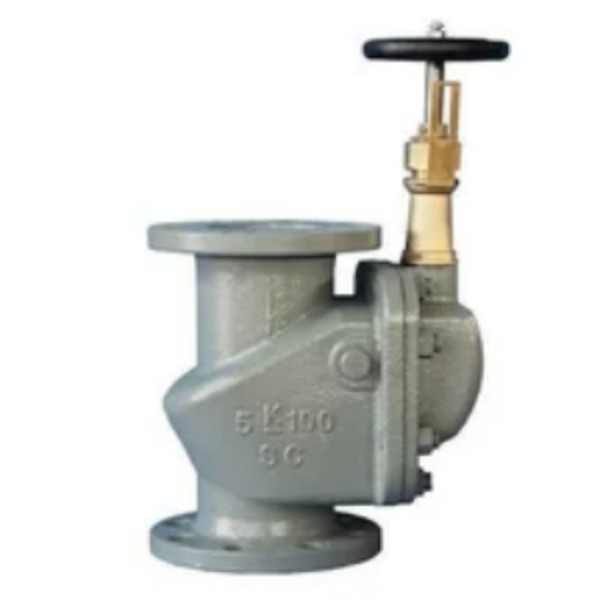

API Storm Valve Vertical type

API Storm Valve Vertical type

Short Description:

winocean is API Storm Valve Vertical type manufacturer in china ,...


  • Material : Cast Steel /Bronze
  • Standards: API
  • Pressure: 150lb

Product Details

Product Tags

API  Storm Valve Vertical type


Technical Data:

Standard Nominal Pressure Nominal Diameter Applicable Medium
Storm Valve 150lbs 50~200 Sea Water.Fresh Water

Material of Main Parts:
Item Parts Name Material Code
1 Body Cast Steel/Bronze WCB/B62
2 Disc Bronze/Stainless Steel B62/SS304
3 Bonnet Cast Steel/Bronze WCB/B62
4 Stem Brass/Stainless Steel B16/SS304
5 Handwheel Cast Iron FC200

Main Data：
Size IMPA CODE H L1 L2 D Weight kgs
50A     70 60 152.40 14.70
65A     78 53 177.80 21.30
80A     90 67 190.50 27.70
100A     105 70 228.60 40.80
125A     123 72 254.00 57.60
150A     135 76 279.40 80.30
200A     257 342.90
