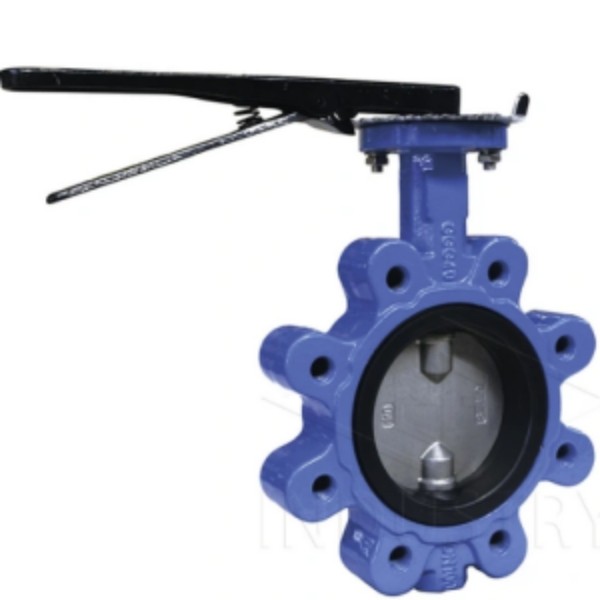

DIN Lug Type Butterfly Valve

DIN Lug Type Butterfly Valve

Short Description:

winocean isDIN Lug Type Butterfly Valve manufacturer ,there are three type lever , gearbox, screw head,...


  • Material : Cast Iron
  • Standards: DIN
  • Pressure: PN10/16

Product Details

Product Tags

DIN Lug Type Butterfly Valve

Technical Data:

Standard Nominal Pressure Nominal Diameter Applicable Medium
Lug Type PN10.16 40~800 Steam,Air&Gas,Oil&Flow Water

Material of Main Parts:
Item Parts Name Material Code
1 Body Cast Iron/Ductile Iron/Cast Steel GG25/GG40/GS-C25N
2 Disc Ductile Iron/Al-Bronze/Stainless Steel GG40/C95400/SS304/SS316
3 Stem Brass/Stainless Steel H62/SS304/SS410
4 Seat Rubber EPDM/NBR/PTFE/VITON

Main Data：

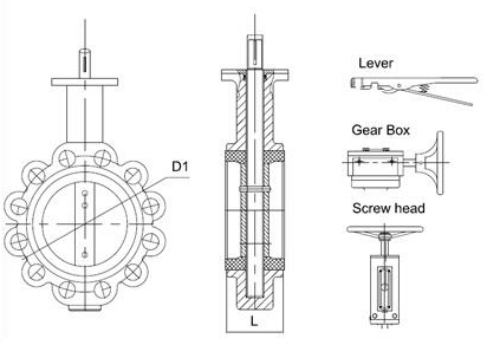

Size L IMPA CODE D1(PN10) D1(PN16) Weight kgs
40A     110 110
50A   754416 125 125 4.10
65A   754417 145 145 5.50
80A   754418 160 160 6.80
100A   754419 180 180 8.60
125A   754420 210 210 10.50
150A   754421 240 240 12.50
200A   754422 295 295 21.40
250A   754423 350 355 29.30
300A   754424 400 410 44.00
350A   754425 460 470 62.20
400A   754426 515 525 112.00
450A   754427 565 585 153.00
500A   754428 620 650 199.00
600A   754429 725 770 283.00
650A
700A     840 840
750A
800A     950 950
