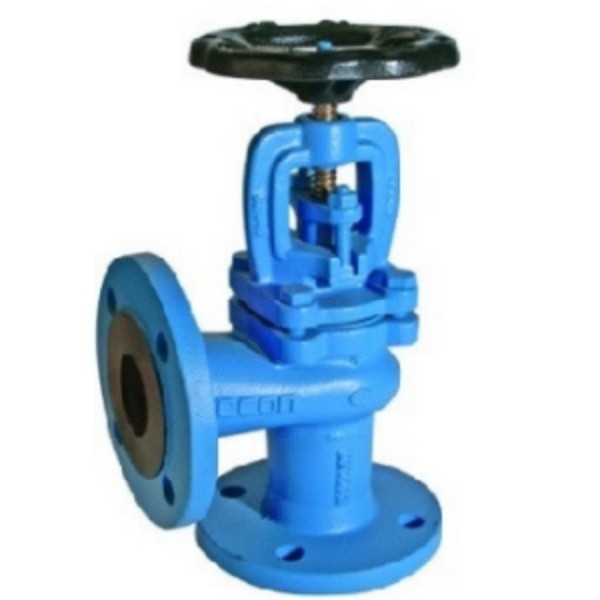

DIN Cast Iron SDNR Flanged Angle Valve

DIN Cast Iron SDNR Flanged Angle Valve

Short Description:

winocean is DIN Cast Iron SDNR Flanged Angle Valve PN6/10/16/25/40/64 manufacturer ,IMPA755246 755247 755248 755249 755250 755251 755252 755253 755254 755255 755256 755258 755259 755260IMPA755251 755252 755253 755254 755255 755256 755258 755259 755260IMPA755256 755258 755259 755260...


  • Material : Cast Iron
  • Standards: DIN
  • Pressure: PN6/10/16/25/40/64

Product Details

Product Tags

DIN Cast Iron SDNR Flanged Angle Valve


IMPA755246 755247 755248 755249 755250 755251 755252 755253 755254 755255 755256 755258 755259 755260IMPA755251 755252 755253 755254 755255 755256 755258 755259 755260IMPA755256 755258 755259 755260


Technical Data:

Standard Nominal Pressure Nominal Diameter Applicable Medium
J44HH PN6.10.16.25.40.64 15~500 Oil,Gas,Water

Material of Main Parts:
Item Parts Name Material Code
1 Body Cast Iron/Ductile Iron GG25/GG40
2 Disc Stainless Steel/Bronze 2Cr13/RG5
3 Stem Stainless Steel/Brass 2Cr13/CuZn35Ni
4 Bonnet Cast Iron/Ductile Iron GG25/GG40
5 Handwheel Cast Iron GG25

Main Data：
Size IMPA CODE L1 Do
GG25 GG25 GG40 PN6/10/16/25/40 PN64 PN6 PN10 PN16 PN25 PN40 PN64
15A 755246 755276 755416 80 95 95 95 95 105
20A 755247 755277 755417 95 90 105 105 105 105 130
25A 755248 755278 755418 100 100 115 115 115 115 140
32A 755249 755279 755419 105 120 140 140 140 140 155
40A 755250 755280 755420 115 130 150 150 150 150 170
50A 755251 755281 755421 125 140 165 165 165 165 180
65A 755252 755282 755422 160 185 185 185 185 205
80A 755253 755283 755423 190 200 200 200 200 215
100A 755254 755284 755424 210 220 220 235 235 250
125A 755255 755285 755425 240 250 250 270 270 295
150A 755256 755286 755426 265 285 285 300 300 345
175A 295 315 315 330 350 375
200A 755258 755288 755428 320 340 340 360 375 415
250A 755259 755289 755429 375 395 405 425 450 470
300A 755260 755290 440 445 460 485 515 530
350A 490 505 520 555 580 600
400A 540 565 580 620 660 670
450A 595 615 640 670 685
500A 645 670 715 730 755
