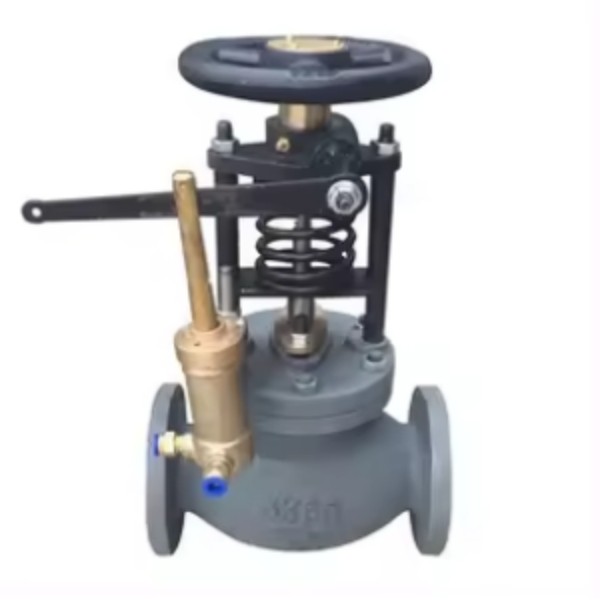

JIS F7399 5K 10K CS Lever OP Fuel Oil Tank Quick Closing Valve

JIS F7399 5K 10K CS Lever OP Fuel Oil Tank Quick Closing Valve

Short Description:

winocean is JIS F7399 5K CS Lever OP Fuel Oil Tank Quick Closing Valve manufacturer ,FUEL OIL TANK EMERGENCY SHUT-OFF VALVE , IMPA...


  • Material : CARBON STEEL
  • Standards: JIS
  • Size: 5K/10K

Product Details

Product Tags

JIS F7399 5K CS Lever OP Fuel Oil Tank Quick Closing Valve


Technical Data:

Standard Nominal Pressure Nominal Diameter Applicable Medium
JIS F7399 5K 15~250 Sea Water.Fresh Water

Material of Main Parts:
Item Parts Name Material Code
1 Body Cast Steel SC230~450
2 Disc Bronze BC6
3 Stem Stainless Steel SS410
4 Bonnet Cast Steel SC230~450
5 Handwheel Cast Iron FC200
Main Data：
Size IMPA CODE L D H Do Weight kgs
5K15     80 130 100 8.50
5K20     85 130 100 8.50
5K25 874501   95 130 120 8.50
5K32     115 165 120 12.70
5K40 874502   120 165 140 12.70
5K50 874503   130 335 160 20.90
5K65 874504   155 395 180 30.50
5K80 874505   180 42 180 35.40
5K100 874506   200 510 224 55.60
5K125 874507   235 570 224
5K150 874508   265 660
5K200 874509   320 780
5K250 874510   385 860
