Short Description:

winocean is leading Marine Aluminum Wooden Embarkation Rope Ladder manufacturer in china , Embarkation Ladder is used to be a rope ladder for embarking lifeboats & rafts in emergency case. Also for crews to embark when anchoring. Light weight, sate, used widely for various ship....


  • Certificate:: ABS , BV , CCS , DNV , GL , LR , KR , NK , RINA , RS

Product Details

Product Tags

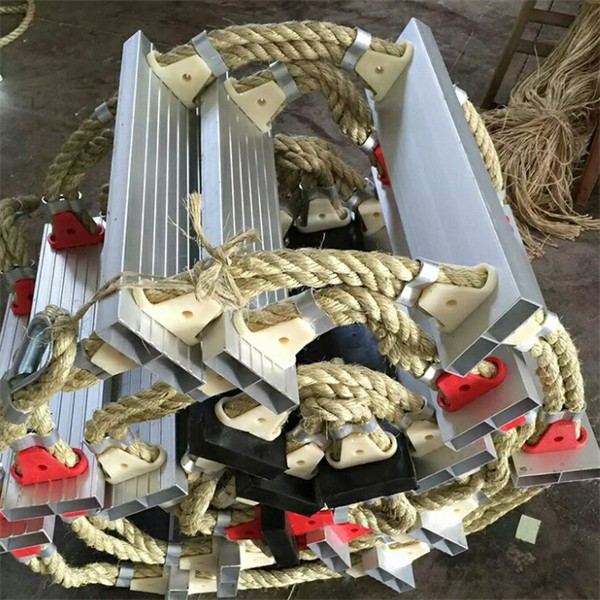

Marine Aluminum Wooden Embarkation Rope Ladder

Aluminum Embarkation Ladder Drawing

China Aluminum Embarkation Ladder:

Embarkation Ladder also can be called as Mount Ship Rope Ladder.

Design & Manufacture Standard: CB/T428-93, ISO5489-1986

Embarkation Ladder is used to be a rope ladder for embarking lifeboats & rafts in emergency case. Also for crews to embark when anchoring. Light weight, sate, used widely for various ship.

Main Material:

Rope: Manila Rope

Timble: plastick & Steel

Step:

Type Material Weight/pc
A Aluminum 0.95
B Wood 1.9
C Rubber 3.5

Main Size List(mm):

No of step Length of rope ladder (mm) Weight (kgs)
Aluminum Wood
10 3100 25.86 31.56
15 4650 33.47 43.92
20 6200 41.08 56.27
25 7750 48.69 68.64
30 9300 56.3 81
35 10850 63.91 93.36
40 12400 71.52 105.72
45 13950 79.13 118.08
50 15500 86.74 130.44
55 17000 94.35 142.86
60 18500 101.96 155.16
to add each 5 steps length increase 1500 weight increase 7.61 weight increase 12.36
Note: the length of a rope ladder is the maximum calculated value under the condition that a ship is heeling to an angle of 15°, and to be selected by the designer.
