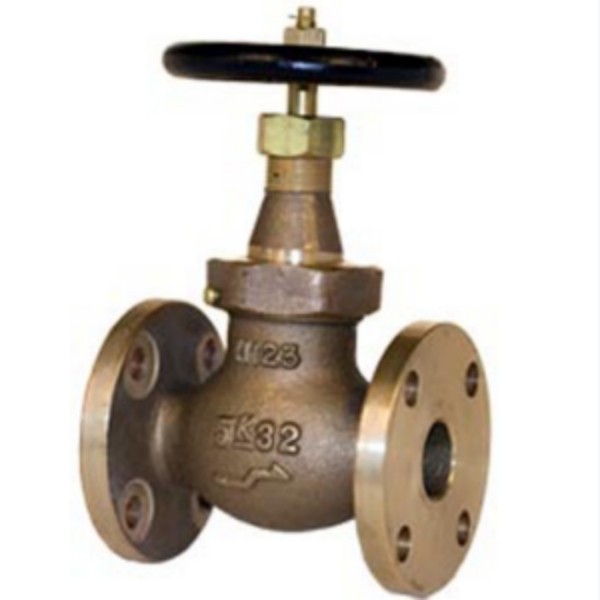

JIS F7411 5K F7413 16K Marine Bronze Union Bonnet SDNR Globe Valve

JIS F7411 5K F7413 16K Marine Bronze Union Bonnet SDNR Globe Valve

Short Description:

winocean is leading JIS F7411 5K F7413 16K Marine Bronze Union Bonnet SDNR Globe Valve manufacturer ,IMPA751281,IMPA751282,IMPA751283,IMPA751284,IMPA751285 ,IMPA751261,IMPA751262,IMPA751263,IMPA751264,IMPA751265...


  • Material : Cast Bronze
  • Standards: JIS
  • Size: 5K/16k

Product Details

Product Tags

JIS F7411 5K F7413 16K   Marine Bronze Union Bonnet SDNR Globe Valve


IMPA751261,IMPA751262,IMPA751263,IMPA751264,IMPA751265

Technical Data:

Standard Nominal Pressure Nominal Diameter Applicable Medium
JIS F7411 5K 15~40 Oil,Gas,Water

Material of Main Parts:
Item Parts Name Material Code
1 Body Cast Bronze BC6
2 Disc Bronze BC6
3 Stem Brass H62
4 Bonnet Cast Bronze BC6
5 Handwheel Cast Iron FC200

Main Data：
Size IMPA CODE L D H Do Weight kgs
5K15 751261 100 80 155 80 2.12
5K20 751262 110 85 165 100 2.91
5K25 751263 120 95 185 125 3.82
5K32 751264 140 115 195 125 5.09
5K40 751265 160 120 210 140 6.71

IMPA751281,IMPA751282,IMPA751283,IMPA751284,IMPA751285

Technical Data:

Standard Nominal Pressure Nominal Diameter Applicable Medium
JIS F7413 16K 15~40 Oil,Gas,Water

Material of Main Parts:
Item Parts Name Material Code
1 Body Cast Bronze BC6
2 Disc Bronze BC6
3 Stem Brass H62
4 Bonnet Cast Bronze BC6
5 Handwheel Cast Iron FC200

Main Data：
Size IMPA CODE L D H Do Weight kgs
16K15 751281 95 155 80 2.87
16K20 751282 100 165 100 3.79
16K25 751283 125 185 125 5.44
16K32 751284 135 195 125 7.04
16K40 751285 140 210 140 8.89
