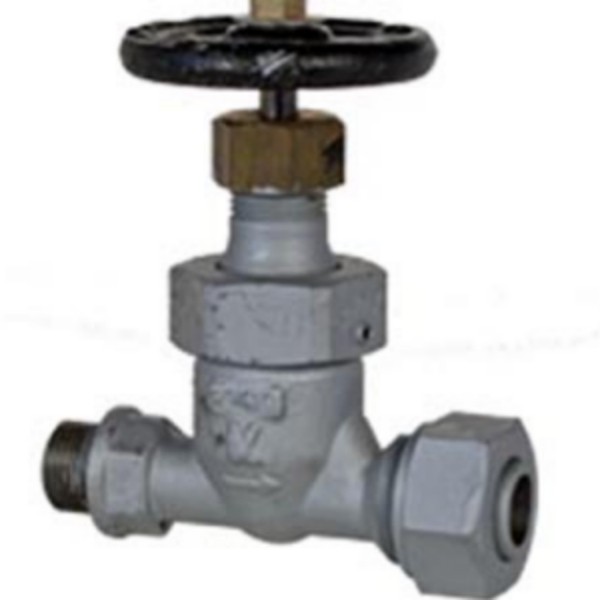

JIS F7336 30K Marine Forged Steel Globe Air Valve

JIS F7336 30K Marine Forged Steel Globe Air Valve

Short Description:

winocean is leading JIS F7336 30K Marine Forged Steel Globe Air Valve manufacturer,IMPA750741 ,IMPA750742 ,IMPA750743 Various series of marine copper alloy, cast iron globe valve, globe check valve, check valve, gate valve, cock valve, butterfly valve, ball valve, fire valve, pressure gauge valve, manual and pneumatic quick-closing valve,...


  • Material : CAST IRON
  • Standards: JIS/DIN
  • Size: 5K/10K/16K

Product Details

Product Tags

JIS F7336 30K Marine Forged Steel Globe Air Valve


IMPA750741 ,IMPA750742 ,IMPA750743

Technical Data:

Standard Nominal Pressure Nominal Diameter Applicable Medium
JIS F7336 30K 15~25 Steam,Air&Gas,Oil&Flow.Lenitic Water

Material of Main Parts:
Item Parts Name Material Code
1 Body Cast Steel SC230~450
2 Disc Bronze/Stainless Steel BC6/SS304/SS420
3 Stem Brass/Stainless Steel H62/SS304/SS410
4 Bonnet Cast Steel SC230~450
5 Handwheel Cast Iron FC200

Main Data：
Size IMPA CODE L D H Do Weight kgs
30K15 750741 115 200 125 5.60
30K20 750742 120 220 140 7.09
30K25 750743 130 250 140 9.46



  • PREVIOUS：JIS F7421 20K Marine Forged Steel Globe Valve
  • NEXT：JIS F7329 40K Marine Forged Steel Globe Valve
